Fast Packaging Glues
5-GLUE9010/12
5-GLUE9010/43 |
Perfect for carton sealing because it is fast setting and has medium viscosity due to the high paraffin wax content (a viscosity modifier). It has a high molten tack which reduces the chance of a carton popping open,and is resistant to shrink tunnel temperatures. Basic polymenr is EVA
(Ethynol Vinyl Alcohol). Light brown in colour. Open time 15 sec.
|
5-GLUE9015/12 |
Economy grade EVA* polymer base glue for applications where a fast bond is required. Ideal for paperboard, wood, fabrics and polystyrene. High
viscosity prevents too much penetration of glue into porous surfaces. Can also be considered as a general purposes glue. Clear in colour. Open time is 15 sec. |
|
General Purpose or Assembly Line Glues
5-GLUE9020/12 |
A cost effective glue with excellent heat resistance, and high viscosity which makes it effective on porous substrates. Provides an excellent bond on soft and hardwoods. Also bonds a wide range of substrates including fabrics, ceramics, leather, polystyrene and some plastics (not polyolefins like PE and PP) EVA* poymer based. Brown in colour. Open time is 45 sec.
|
5-GLUE9040/12
5-GLUE9040/43 |
Clear and flexible with 45 second open time and good heat resistance. A better quality version of the 5-GLUE9020 with a higher tackier and resin
content for lower viscosity, better flow and a closer, tighter joint line. Ideal for hobbyists, florists, assembly of vertical blinds and lampshdes etc. Clear in colour. |
Melts @ 129c
5-GLUE3M3762LM |
Hot melt adhesive 3762-LM is a low melt, 100% solids thermoplastic adhesive, excellent 'hot tack' - designed for packaging applications. Features excellent 'hot tack'. Bonds to bead board, corrugated materials, and displays. Made from components listed as indirect food additives under FDA regulation for adhesives. It is dispensed with 3M 'Scotch weld' Hot melt applicator PH II LT. |
Removable
5-GLUE3M3798LM |
Scotch-Weld hot melt adhesive 3798LM TC is a 100% solids thermoplastic. Low temperature applied, removable adhesive. Scotch-Weld Hot melt adhesive 3798LM TC it is easily removed without residual tack and can be used on a variety of substrates. It is dispensed with a 3M scotch-weld hot melt applicator LT. |
Removable/Peelable
5-GLUE2169/BK |
Hot melt adhesive 2169 has been formulated for use as a multi-purpose peelable adhesive. It is suitable for most paper and plastic materials, and to remain on the surface that it has been applied to. It is also ideal for making glue dots with the use of the 5-GLUEGTEC8200 glue dot dispenser. |
Removable/Peelable
5-GLUE003A |
Lite Lok 003A is a light coloured, pressure sensitive hot melt adhesive. The product removes cleanly from various substrates, e.g. envelope and paper stock, boards, various films and stainless steel without picking. It is often used for attachments to the front of magazines. It does not appreciably increase in adhesion with time and temperature. |
|
High Performance Glue
5-GLUE9060/12
5-GLUE9060/43 |
The glue to turn to when all else fails in the product assembly area. A medium viscosity formulation combining an EVA* polymer with a unique rubber base for an extremely shock resistant, resilient, rubber-like bond. It works on the most difficult surfaces including most polyethelene and PP plastics, acrylics, ceramics, glass, metals, fibreglass and hardboard. It is lightbrown in colour. Open time is 40 sec.
|
|
Spray Glue
5-GLUE9062/43 |
Used for pallet stabilisation - holding together fibreboard cartons and PP racks and pallets which need to be moved and then pulled apart without removing the graphics. Of our three spray glues this has the least plasticiser and tackier content and therefore the best flow and highest output. It is light brown in colour. Open time is 60 sec. |
Low melt
5-GLUE3M3762LM |
Hot melt adhesive 3762-LM is a low melt, 100% solids thermoplastic adhesive, excellent 'hot tack’- designed for packaging applications. Bonds to beadboard corrugated materials, and displays. Made from components listed as indirect food
additives under FDA regulation for adhesives. It is dispensed with 3M 'Scotch weld' Hot melt applicator PH II LT. |
Removable
5-GLUE3M3798LM |
Scotch-Weld hot melt adhesive 3798LM TC is a 100% solids thermoplastic. Low temperature applied, removable adhesive. Scotch-Weld Hot melt adhesive 3798LM TC is easily removed without residual tack and can be used on a variety of substrates. It is dispensed with a 3M scotch-weld hot melt applicator LT. |
|
Hot Melt Glue adhesive provides an instant and permanent bond between a vast range of materials and can be used for a wide range of applications such as; packing and carton sealing; potting and encapsulating; sealing, gap filling and reinforcing; repair or assembly just to name a few. There are two methods of applications – bead (or dot) and spray. Bead is a continuous bead of molten glue with the thickness, spread and pattern controlled by the operator. Spray is where the molten glue is sprayed from the TEC6300 glue gun which can be more advantageous as it is more economical with the amount of glue used and the molten glue is spread over a wider area and is more suitable for heat sensitive material that can be damaged by bead application
.*EVA is Ethyl Vinyl Alcohol |
|

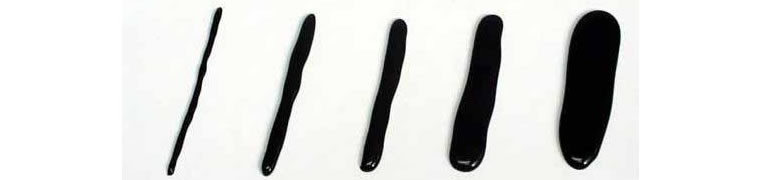

- First on Left: a 1.5mm wide bead enables approx 560 linear m/kg
- Second from Left: a 3mm wide bead enables approx 153 linear m/kg
- Middle: a 6mm wide bead enables approx 67 linear m/kg
- Second from right: a 10mm wide bead enables approx 46 linear m/kg
- Far right: a 12.5mm wide bead enables approx 31 linear m/kg
- In comparison a small dot of glue approx 0.7cm wide gives approx 6600 dots/kg
- Small dot approx 1.3cm wide give approx 3390 dots/kg
- Medium dot approx 2cm wide gives approx 1520 dots/kg
- A large dot approx 3cm wide gives approx 735 dots/kg
|
Hot Melt Glue and Packaging Glue
Code |
Size
|
Colour |
Open Time |
Features |
5-GLUE9010/12 |
12mm x 300mm GLUE STICKS |
LIGHT BROWN |
15 SEC |
FAST PACKING GLUE |
5-GLUE9010/43 |
43mm x 40mm GLUE SLUGS |
LIGHT BROWN |
15 SEC |
FAST PACKING GLUE |
5-GLUE9015/12 |
12mm x 200mm GLUE STICKS |
CLEAR |
15 SEC |
FAST PACKING GLUE |
5-GLUE9020/12 |
12mm x 300mm GLUE STICKS |
BROWN |
45 SEC |
GENERAL PURPOSE |
5-GLUE9040/12 |
12mm x 300mm GLUE STICKS |
CLEAR |
45 SEC |
GENERAL PURPOSE |
5-GLUE9040/43 |
43mm x 40mm GLUE SLUGS |
CLEAR |
45 SEC |
GENERAL PURPOSE |
5-GLUE9060/12 |
12mm x 300mm GLUE STICKS |
LIGHT BROWN |
40 SEC |
HIGH PERFORMANCE |
5-GLUE9060/43 |
43mm x 40mm GLUE SLUGS |
LIGHT BROWN |
40 SEC |
HIGH PERFORMANCE |
5-GLUE9062/43 |
43mm x 40mm GLUE SLUGS |
LIGHT BROWN |
60 SEC |
SPRAY GLUE |
5-GLUE2169/BK |
0.5kg BLOCK |
CLEAR |
|
REMOVABLE / PEELABLE |
5-GLUE003A |
LITE LOK 003A - 12kg/ctn Carton |
CLEAR |
|
REMOVABLE / PEELABLE |
5-GLUE3M3762 |
3M JET MELT ADHESIVE 3762 (5kg/ box) |
|
|
GENERAL PURPOSE |
5-GLUE3M3762LM |
5-GLUE3M3762LM 3M JET MELT ADHESIVE 3762 - LOW MELT (5kg/box) |
|
|
MELTS @ 129C |
5-GLUE3M3798LM |
12mm x 200mm REMOVABLE GLUE STICKS |
3M GUMMY GLUE |
|
REMOVABLE |
5-GLUE-P |
21 LITRE - PADDING GLUE |
|
|
|
5-GLUE3182 |
3182 ADHESIN/GRIPIT - 15Lt |
Waterborne adhesive, suitable for fast production lines and bonds well to a vatirty of coated paper |
5-GLUE3218 |
3218 TECHNOMELT GLUE - 20Lt |
Graphic Industry /perfect binding on automatic machines, book spine, gluing of thread stich books |
5-GLUE3788 |
3788 ADHESIN / GRIPIT - 15Lt |
Waterborne high viscosity resin, designed for bonding papers & films. Bookbinding & Packaging |
5-GLUE4126 |
4126 TECHNOMELT GLUE - 15kg |
Designed for carton & packet making & sealing, very fast bond forming (setting) |
5-GLUE4706 |
4706 TECHNOMELT GLUE - 15kg |
Paper converting applications ,perfect binding, Fast setting at relatively high strength |
5-GLUE5752 |
5752 ADHESIN / GRIPIT - 15Lt |
Waterbased adhesive, high flexibility & long term service , Bookbinding & Padding applications |
Glue Guns
Code |
Description
|
Glue Used |
5-GLUEGTEC250 |
SIMPLEST LIGHTWIEGHT GLUE GUN |
12mm STICKS |
5-GLUEGTEC810 |
DESIGNED FOR CONTINOUS USE - HEAVY DUTY |
12mm STICKS |
5-GLUEGTEC820 |
ADJUSTABLE TEMPERATURE CONTROL |
12mm STICKS |
5-GLUEGTEC3200 |
HIGH OUTPUT GLUE GUN |
43mm SLUGS |
5-GLUEGTEC6100 |
HIGH OUTPUT GLUE GUN |
43mm SLUGS |
5-GLUEGTEC6300 |
SPRAY APPLICATOR |
43mm SLUGS |
5-GLUEGMS200 |
LARGE GLUE CHAMBER |
43mm slugs, granulate and pillows |
5-GLUE3MLTS |
3M DESIGNED FOR LOW MELT |
3M AND 12mm STICKS |
5-GLUEGVH5 |
BULK ADHESIVE DISPENSER |
BULK |
5-GLUEGTEC8200 |
GLUE DOT DISPENSER |
0.5KG BLOCK |
|
